20″ Fat-Tire Folding Electric Bike – Compact & Efficient | 48V 500W Motor | 28–35 KM Range | 5 PAS Modes

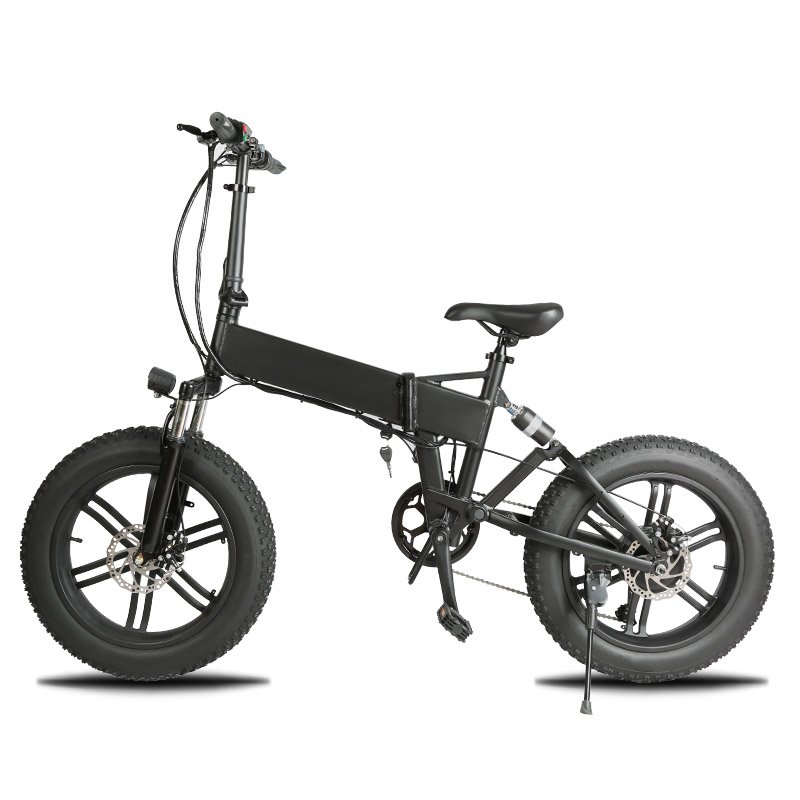

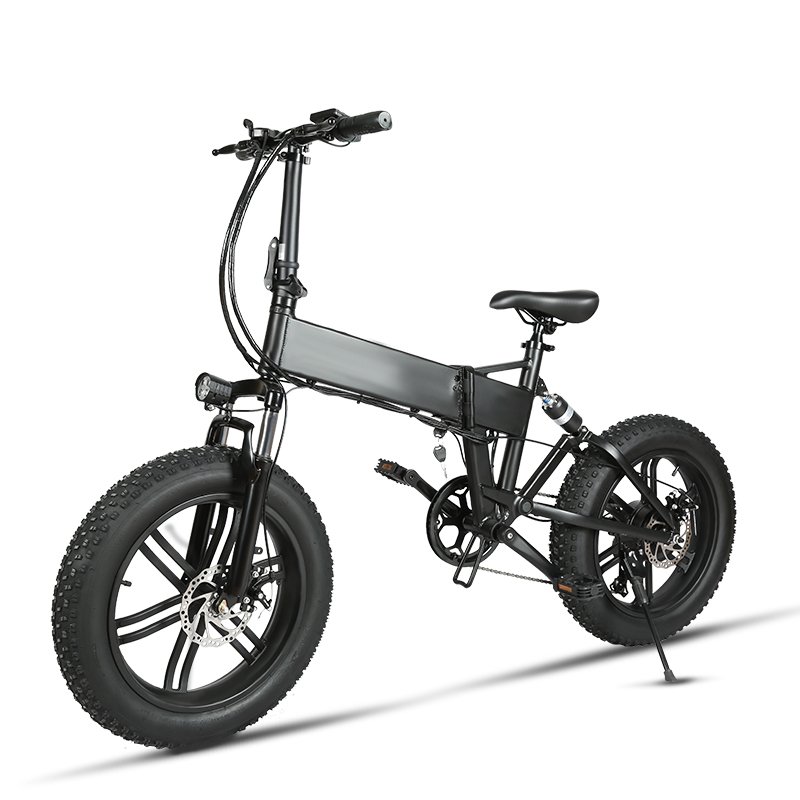

Engineered for urban adventurers and OEM/ODM partners alike, this 20″ Fat-Tire Folding Electric Bike blends portability with rugged performance. Featuring a 48 V 500 W brushless hub motor, a removable 10 Ah lithium battery, and 20″ × 4.0″ fat tires, it delivers smooth, stable rides on pavement, boardwalks and light trails—then folds down in seconds for easy storage or transport.
Key Features
Performance
-
Motor: 48 V 500 W rear-hub brushless for rapid acceleration and up to 25 KM/H assisted speed.
-

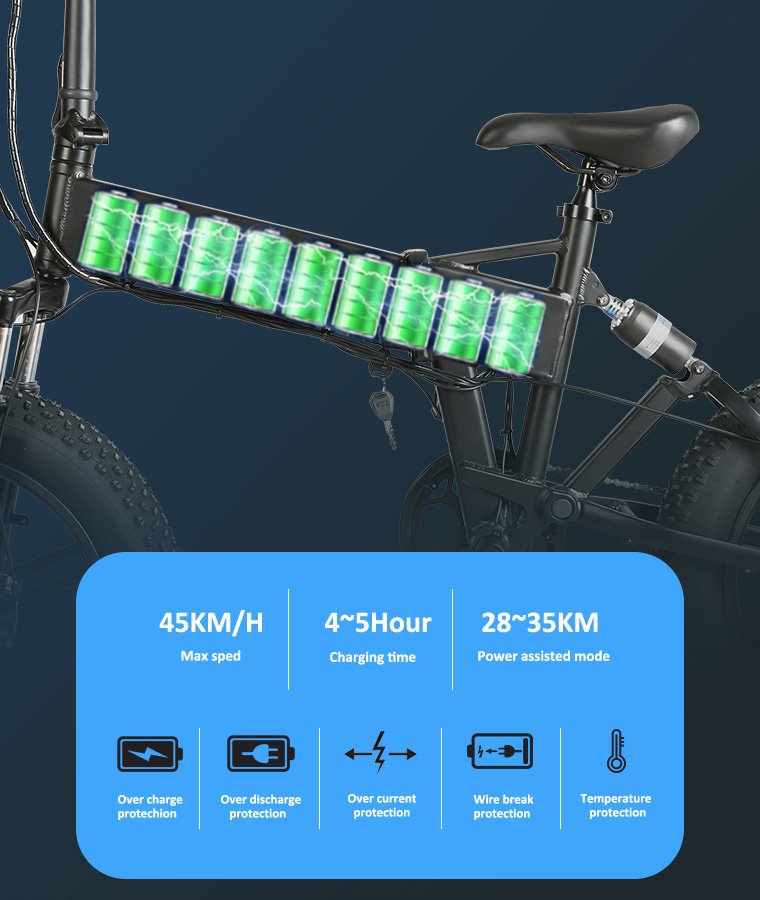

Battery: 48 V 10 Ah removable Li-ion pack providing 28–35 KM per NEDC charge; BMS protections guard against overcharge, over-discharge, over-current, wire-break and temperature extremes.
-
Tires: 20″ × 4.0″ fat, anti-skid, wear-resistant tread for excellent grip on sand, snow, gravel and pavement.
Comfort and Control
-

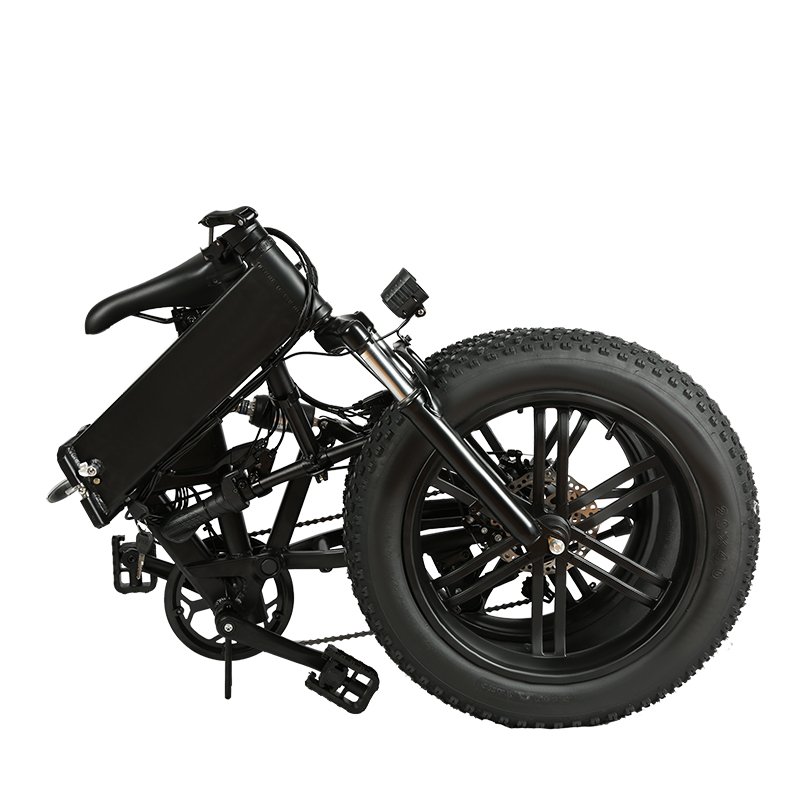

Foldable Frame: Lightweight 6061 aluminum-alloy step-through design with center-hinge quick-fold for compact stowing.
-
Suspension: Front fork shock absorber smooths out bumps for a plush ride.
-
Ergonomics: Adjustable saddle height and swept-back handlebars reduce rider fatigue.
-

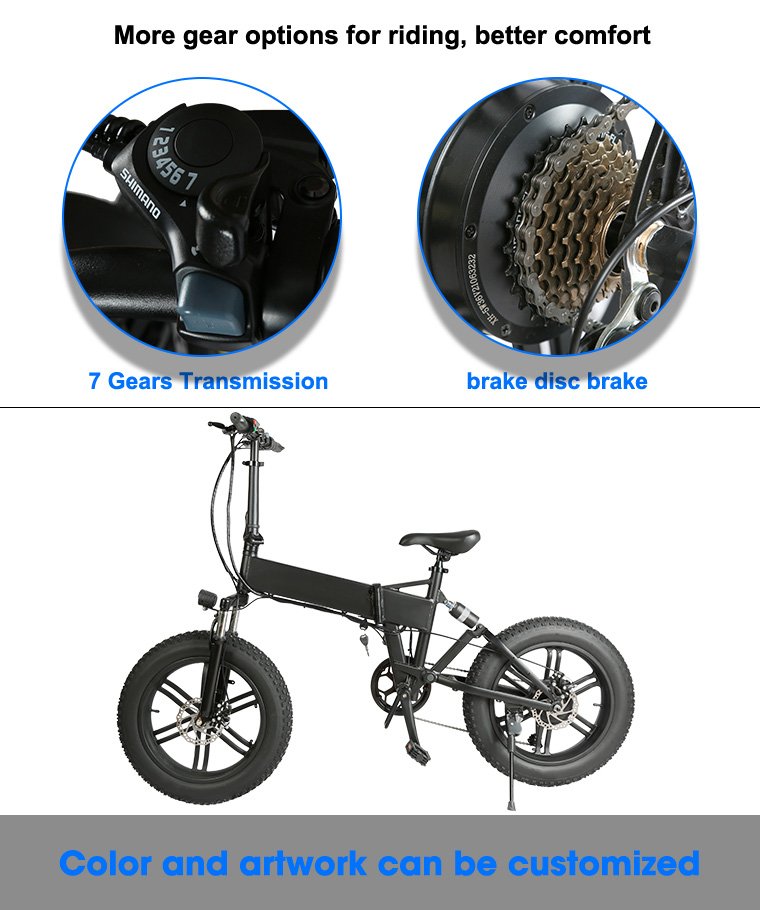

Transmission: Shimano 7-speed cassette offers versatile gearing for hills and flats.
Safety Features
-
Disc Brake System: Front & rear mechanical disc brakes deliver confident stopping power in wet or dry conditions.
-
Integrated Lighting: High-lumens LED headlight and rear reflector enhance visibility at dusk or dawn.
-

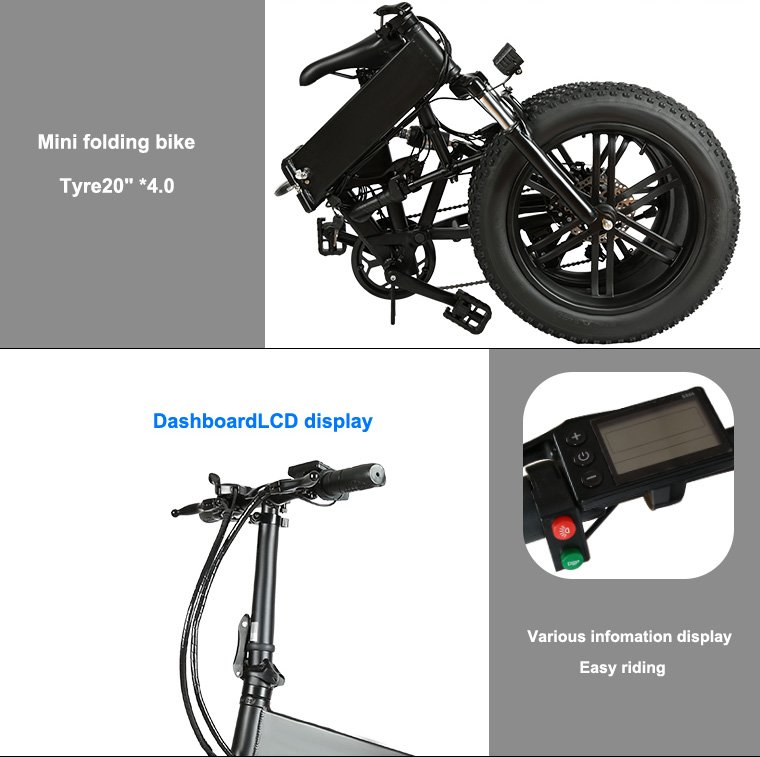

Digital Display: Backlit LCD shows speed, battery level, odometer, PAS mode and trip distance at a glance.
Smart E-Drive Modes
-
Pedal Mode
-
Sport Mode (5 PAS Levels)
-
Throttle/Accelerator Mode
Technical Specifications
| Specification | Detail |
|---|---|
| Motor | 48 V 500 W Rear-Hub Brushless |
| Battery | 48 V 10 Ah Removable Lithium |
| Tire Size | 20″ × 4.0″ Fat Anti-Skid |
| Range (NEDC) | 28–35 KM per Charge |
| Frame Material | Aluminum Alloy 6061 Step-Through (Foldable) |
| Suspension | Front Fork Shock Absorber |
| Brake System | Front & Rear Mechanical Disc |
| Transmission | Shimano 7-Speed Cassette |
| Display | Backlit LCD (Speed/Battery/PAS/Trip/Odometer) |
| Riding Modes | Pedal / Sport Assist (5 PAS) / Throttle |
| Foldability | Center-Hinge Quick Fold |
| Load Capacity | Up to 120 kg (265 lbs) |
| Charging Time | 4–6 Hours |
